Guide Roller Bracket for Conveyor Side Guide Rollers


Price:
Sale price$94.00 CAD
Stock:
In stock (34 units)

Estimate shipping

Description

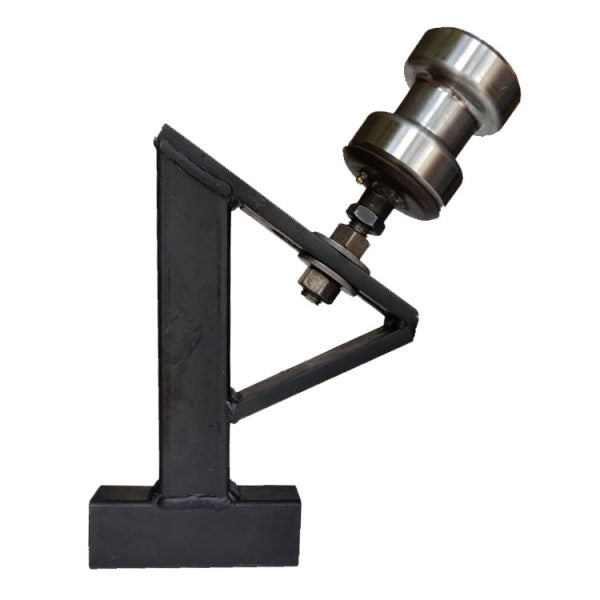

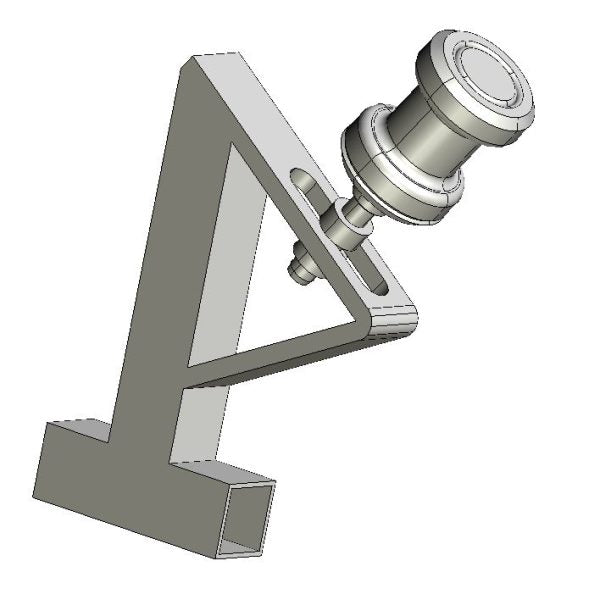

Welded steel mounting bracket for PROGUIDE side guide rollers. The angled arm carries the roller, and the square-tube upright and flat base give it a rigid, durable footing on the conveyor frame, so the roller keeps the belt tracking without flexing or working loose.

Fits

  • PROGUIDE side guide rollers (roller shown for reference, sold separately)
  • Conveyor belt guide roller installs on portable and stationary conveyors

Details

  • Upright: 2″ x 2″ x 10″ square tubing
  • Overall height: 11.88″
  • Base: 6″
  • Welded steel construction
  • Sold individually; the 2″ steel washer shown at the roller mount is available separately

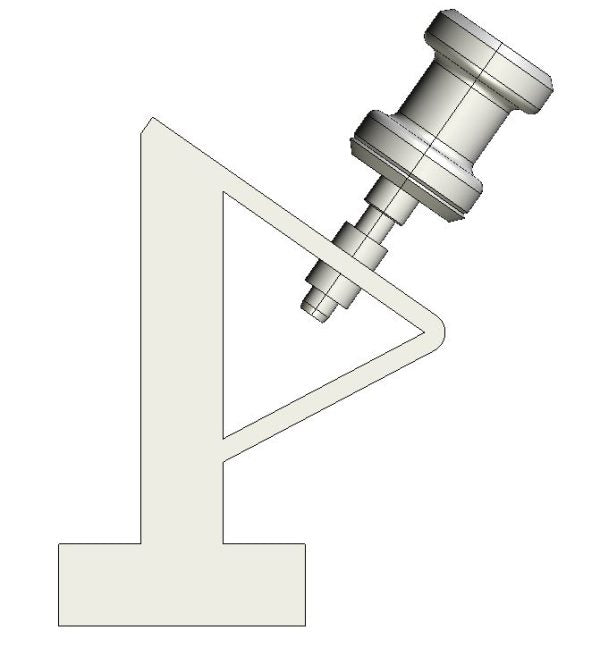

guide roller bracket dimensions: 2 x 2 x 10 inch square tubing, 11.88 inch overall height, 6 inch base

Custom sizes on request.
