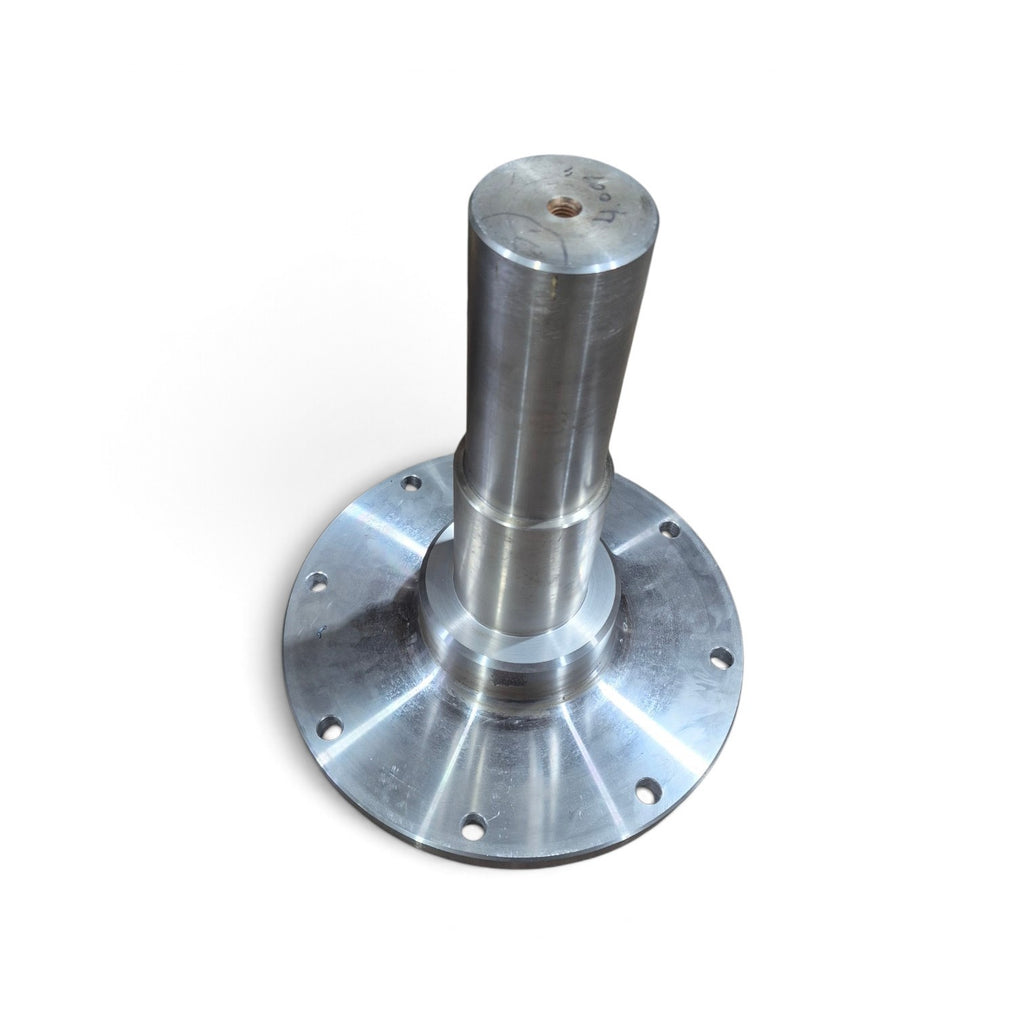

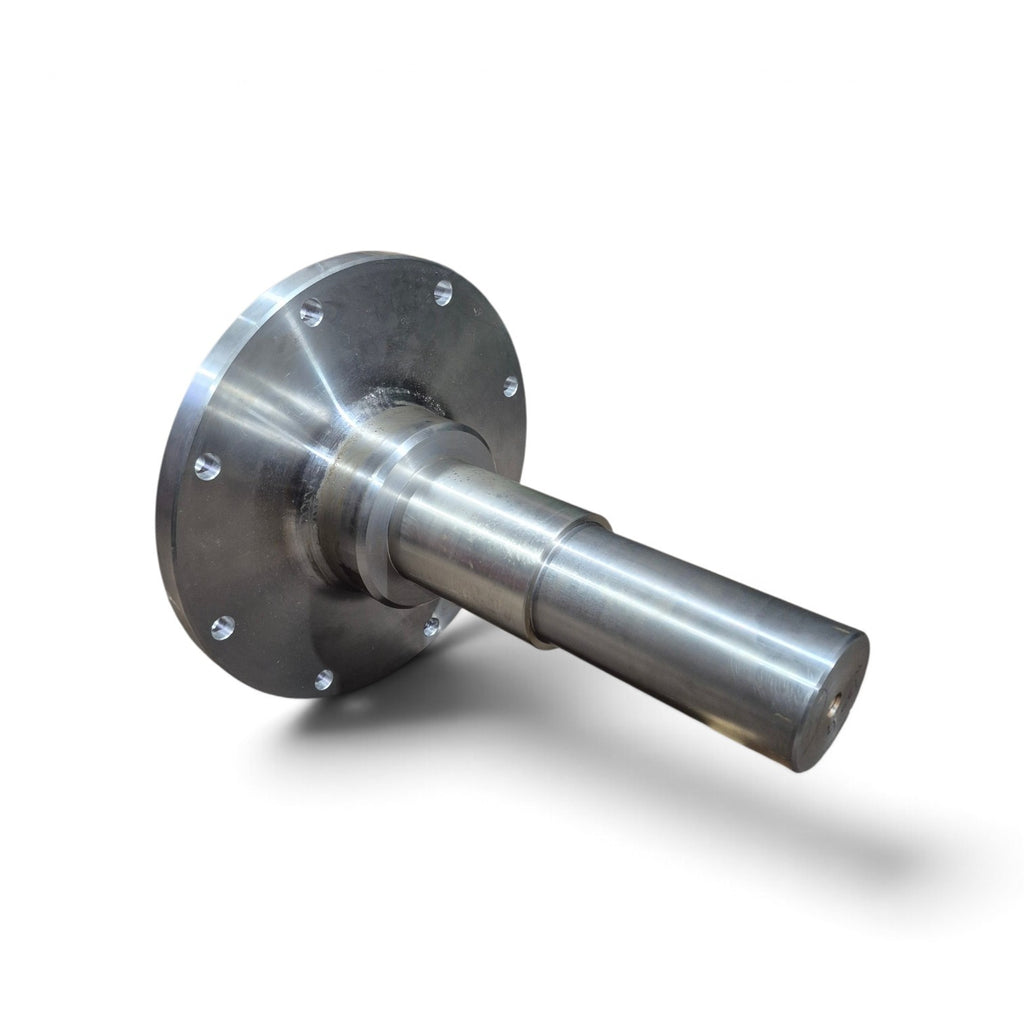

Aftermarket stub shaft (stub spindle) for McLanahan® log washers, machined in Canada as a direct replacement for the OEM part. The 17″ flange bolts to the flanged end of the log with eight 3/4″ bolts, the 100 mm journal carries the log in its bearing, and a shrink-fit 304 stainless sleeve gives the tub seal a corrosion-resistant surface to run on instead of bare mild steel. Sold individually and made to order.
Fits
- McLanahan® log washers with a 17″ eight-bolt log flange (15.250″ bolt circle) and 100 mm (3.937″) bearings
- Send us your washer model or the old shaft's dimensions and we will confirm the fit before machining
Details
- Overall length: 19.125″; 17.125″ from the flange face to the end of the journal

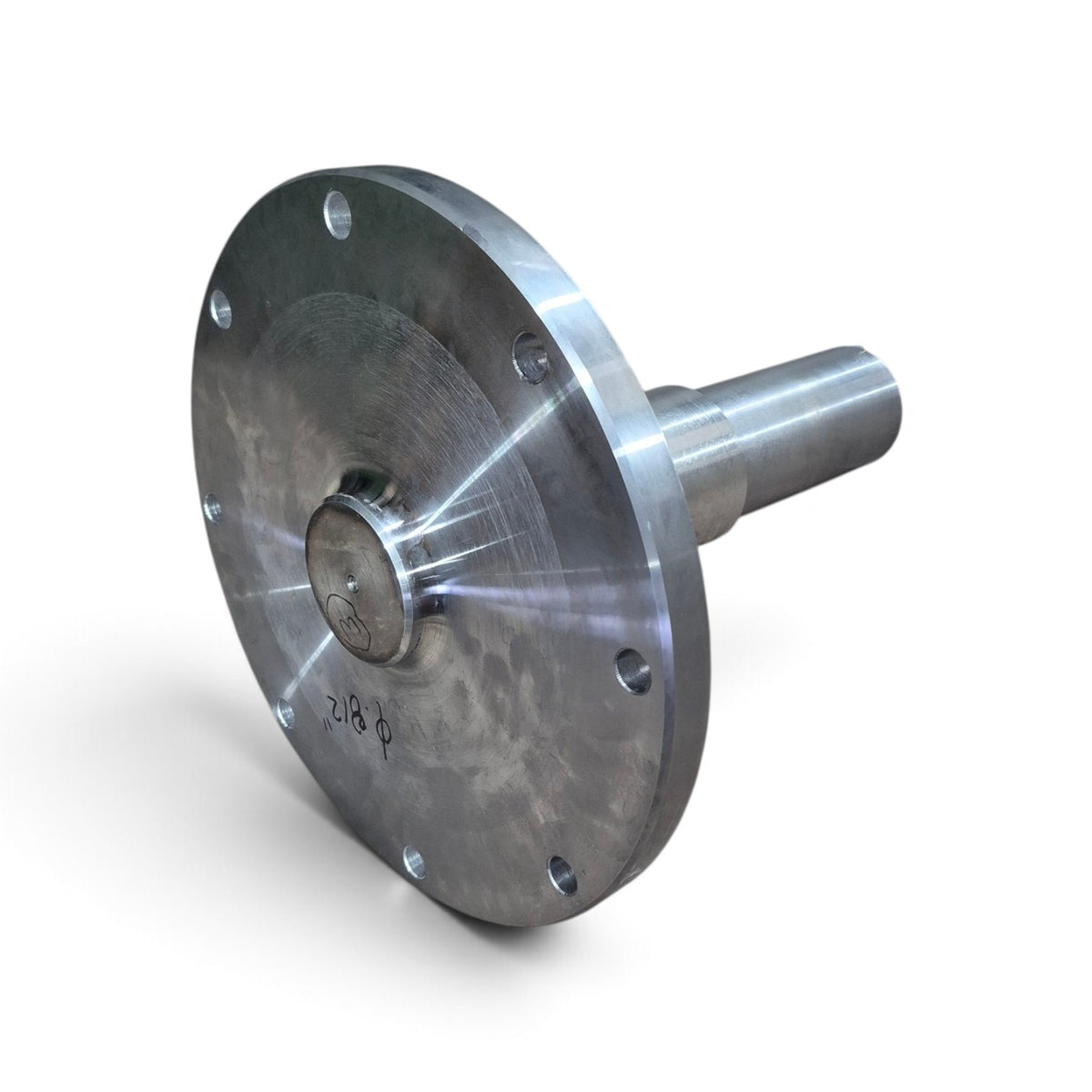

- Flange: 17.000″ OD x 1.250″ thick, eight 0.812″ holes equally spaced on a 15.250″ PCD, 4.000″ x 0.750″ pilot on the back face
- Hub: 7.000″ OD, welded to the flange with chamfered weld preps both sides
- Seal sleeve: 304 stainless (316 on request), 4.625″ OD x 6.062″ long, shrink fit on a 4.000″ seat
- Bearing journal: 3.9365″/3.9355″ (100 mm nominal) x 8.125″ long, end drilled and tapped 5/8″-11 UNC x 2.000″ deep for the bearing retainer
- Material: 1018 steel body and flange; critical diameters held to ±0.002″, sleeve fit to ±0.001″
- Made to order in Canada. Other McLanahan® washer stub shafts, and stub shafts for other makes, are machined from your sample or drawing
Also see our 7/8″ spherical washers and steel screen deck plates for the rest of the wash plant.
This is a non-OEM aftermarket replacement for McLanahan® parts. PROGUIDE is not affiliated with McLanahan Corporation in any way, and the replacement parts are not sourced from McLanahan.
