Swing Jaw Main Cap Bolt for Jaw Crushers, 2 ¼″ x 46″


Washers: Include Washers
Price:
Sale price$557.00 CAD
Stock:
Made to Order

Estimate shipping

Description

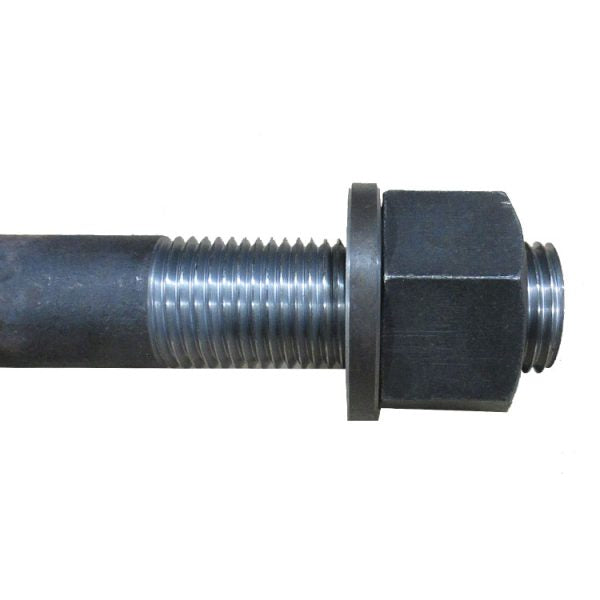

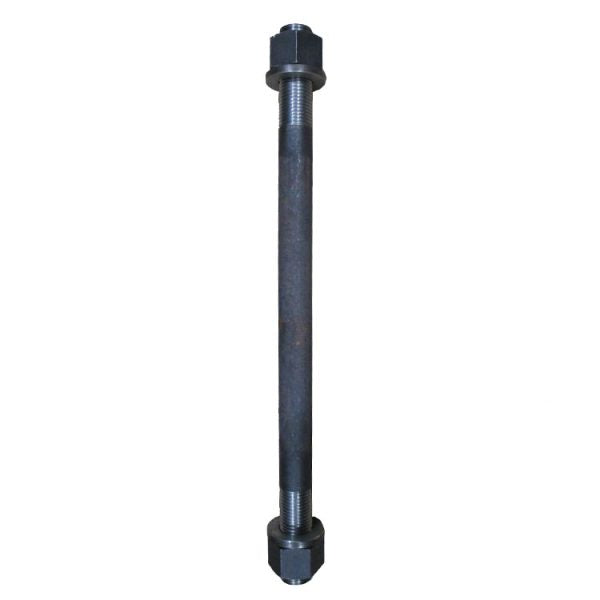

Heavy duty swing jaw main cap bolt for jaw crushers: 2.250″ OD x 46.0″ long, threaded 6.500″ on both ends with 4.5 UNC thread. Choose the bolt alone or with a pair of heavy duty washers. Machined in Canada as a non-OEM replacement for Metso® Nordberg jaw crusher parts.

Details

  • Diameter: 2.250″ OD
  • Length: 46.0″
  • Threads: both ends, 6.500″ long, 4.5 UNC
  • Optional heavy duty washers: 4.0″ OD x 2.275″ ID x 0.500″ thick
  • Sold individually; custom sizes available on request

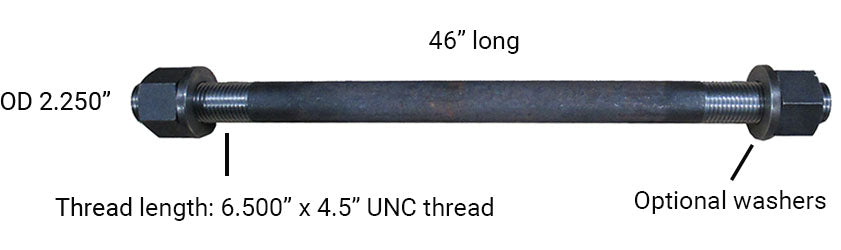

swing jaw main cap bolt dimensions: 2.250 inch OD, 46 inch long, 6.500 inch thread length each end

Related jaw crusher fasteners: the 8 ¼″ cheek plate bolt and the C145 cheek plate bolt.

These parts are non-OEM replacements for Metso® Nordberg parts. PROGUIDE is not affiliated with Metso® Nordberg in any way, and the replacement parts are not sourced from Metso® Nordberg.
